Earth Resistance & Soil Resistivity Testers

The KUSAM-MECO KM-1520 Earth Tester has a measurement range of 0.01 2000 ohms. It operates on a 9V, offering portability and convenience. The device features a clear LCD display for easy reading and includes a data hold function. Additionally, it is equipped with a built-in test lead for straightforward operation.

 Measuring Ranges : Earth Resistance : 0-20W , 0-200W , 0-2000W

Earth Voltage : 0-300.0V AC

Earth Resistivity : 0.06~6.28kW . m, 0.62~62.8kW . m, 6.28~628kW . m, (r =2 x p x L X R)

​

• 3- and 4-pole Fall-of-Potential, earth resistance loop testing

• 4-pole Soil Resistivity testing

• Selective earth ground rod testing using 1 clamp

• IP56 rated for outdoor use

• USB data storage and transfer

The DET 20 is a reliable 3½ digit LCD meter designed for accurate measurements of earth resistance, soil resistivity, and earth voltage. Thanks to its cutting-edge RSR technology, it delivers stable and precise readings, even when the battery starts to run low. Built tough for heavy-duty tasks and challenging environments, this instrument is your go-to for dependable performance.

Double Clamp, Multi-function, Earth and Grounding Resistance Tester for on-site measurement of grounding resistance, soil resistivity, grounding voltage, grounding line leakage current, AC current and DC resistance. Offers precision 4-wire method, 3-wire method and simple 2-wire method, selection method, double-clamp method to measure grounding resistance.

Precision 4-wire, 3-wire and simple 2-wire measurement for Earth Resistance, Soil Resistivity, Earth Voltage and AC Voltage. Complete kit in hard carrying case.

This is your Team Member description. Use this space to write a brief description of this person’s role and responsibilities, or add a short bio.

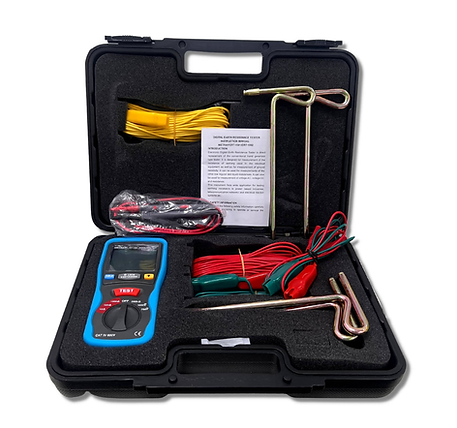

The Metravi ERT-1501 is an electronic, digital, earth resistance tester and a direct replacement or the conventional hand generator type tester for 0 – 10 / 100 / 1000Ω, and features 4 Terminals with a Testing Kit and Cables in a hard carrying case.

​

The FT6031-50 is a IP67 dustproof and waterproof two-pole or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests.

• DET4TCR2: Rechargeable battery-powered four-terminal tester with selectable test frequencies, greater measurement sensitivity, attached rod technique (ART), and stakeless measurement capability

Digital Earth Tester measures available  in three ranges

0-10-1000 Ohms

0-10-2000 Ohms

0-2-20-2000 Ohms

The Waco WI 1001 is a hand-driven analogue insulation tester (often called a megger) designed for measuring the insulation resistance of electrical equipment and wiring. It’s powered by a manual hand crank instead of batteries or external power, making it ideal for field work, maintenance, and sites without power. The robust metal construction ensures durability for industrial and workshop use.

KM-1620 / KM 1720 single-jaw type Earth Resistance Tester is widely used for earth resistance testing of the equipments in the field of power, telecommunication, as well as the other electrical equipments. It features easy operation, high-accuracy and good adaptation of testing environment.

The 1630-2 FC clamp measures earth ground loop resistances for multi-grounded systems using the dual-clamp jaw. This test technique eliminates the dangerous and time-consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary test stakes.

4 Digits LCD, 32 X 65 mm Clamp Jaw, with Data Hold, Open Clamp Jaw Indication, Range 0.010 to 1500 Ohms. Maximum Resolution 0.001 Ohms, With Leakage Current Measurement up to 35A.
